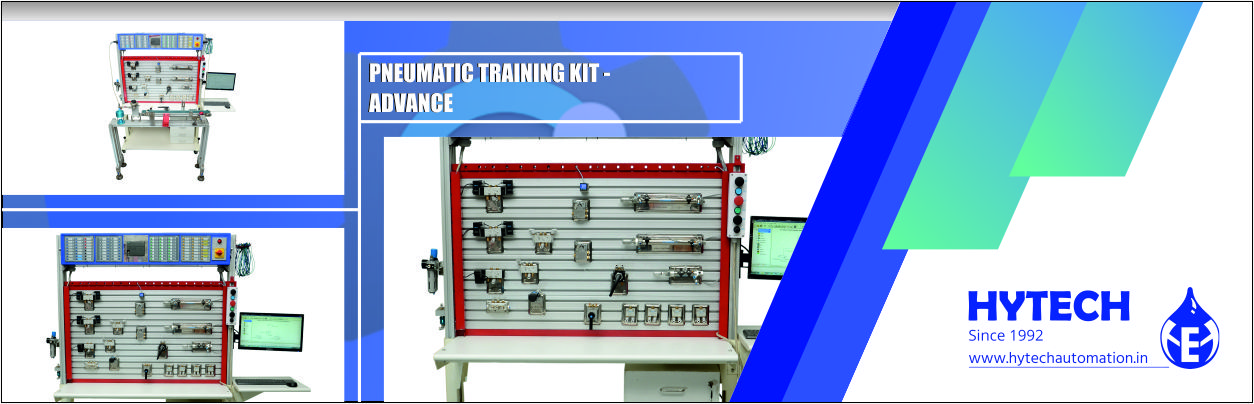

Advance Pneumatic Training Kit

Advance model of pneumatic kit comes with a double sided work bench. Front portion is mounted with all electrical / PLC operated valves as well as actuators. Back portion is mounted with conventional valves and actuators.

Control module of Electropneumatic Training Kit (Model: Advance) comes with following control equipment:

1. PLC input module:

PLC input module is hard wired to PLC inputs. Each input is connected with a three pin connector to make the assembly modular. PLC input module is equipped with a push button for each input which functions as an input override. Necessary precautions are taken to provide short circuit protection. Corresponding input bits are printed on the PLC input module.

2. PLC output module:

PLC output module is hard wired to PLC outputs. Each output is connected with a three pin connector to make the assembly modular. Necessary precautions are taken to provide short circuit protection. Corresponding output bits are printed on the PLC input module.

3. Field input module:

Field input module is hard wired to field inputs. Each field input is connected with a three pin connector to make the assembly modular. Name of a corresponding field input device is printed on Field input module.

4. Field output module:

Field output module is hard wired to field outputs. Each field output is connected with a three pin connector to make the assembly modular. Name of a corresponding field output device is printed on Field input module.

With these input and output modules, participants can easily connect any desired input / output to any desired PLC input / output. This enables participants to carry out different PLC programs with ease as well as efficiency.

Electropneumatic training kit (Model: Advance) can also be used for basic pneumatic training kit. At a time, 4 students (2 on each side) can work on an Electropneumatic training kit (Model: Advance).

Following accessories are provided with Electropneumatic Training Kit for ease of operation:

1. Three way Two position Hand slide valve
2. Five way manifold
3. Four way manifold
4. Blocking (Isolation) sticks
5. Patch cord holder

Electropneumatic Training Kit (Computer Controlled) with PLC:

Horizontal flat face (front)                  : 1200mm x 400mm

Horizontal flat face (back)                   : 1200mm x 400mm

Vertical work area on front face          : 1200mm x 720mm

Vertical work area on back face          : 1200mm x 720mm



Following types of valves are provided along with electropneumatic training kits:

Basic (Conventional) Valves:

1. Hand Operated / Lever Operated Direction Control Valves
2. Hand Operated / Push Button Operated Direction Control Valves
3. Pilot Operated Direction Control Valves
4. Logic Valves (AND / OR)
5. Actuators (Cylinders)
6. Flow Control Valves
7. Air Treatment Units (FRL, Manifolds, etc)
8. Hand Slide Valve

Advance Valves:

9. Solenoid Operated Direction Control Valves
10. Pressure Switch
11. Air Regulators
12. Time Delay Valves
13. Vacuum Generator
14. Pneumatic Motor
