PH Advance is a floor mounted model of Hytech PLC and HMI training Kit.
This model is equipped with a workstation with necessary licensed software. The kit is designed in a way such that 3 students can work on the kit at a time.
Although, Bill of material of any particular training kit changes as per the models of PLC and HMI as per customer’s requirement along with automation modules, following items / components are provided along with each PH Advance model:
- Field Input Module
- Field Output Module
- PLC Input Module
- PLC Output Module
- 5 / 8 port switch
- LED Monitor mounting stand
- 500 x 500 mm holding stand for keyboard and mouse
- Workstation with optimum specifications and with a mounting stand
- 21 inch LED Monitor

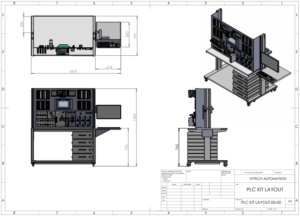

3D IMAGE GOES HERE
Following Automation modules are supplied along with the PH Advance model irrespective of the make and model of PLC / HMI. These automation modules are ergonomically mounted to make sure that participants can carry out the programming / execution easily.
Customers can select from following mentioned automation modules which can either be mounted on the kit or can be provided individually which can be integrated with the kit:
Following Miscellaneous components are also included along with the kit to make operation efficient:
- Profinet Cable (Cat 6) minimum 1 meter, Qty: 02
- Hand Slide (3/2) Pneumatic Valve for quick exhaust
- Pneumatic Junction box (Minimum 4 ports)
Key Features of Hytech PLC and HMI Training Kit (PH Advance Model):
- Indigenously designed PLC Input and output modules with a short circuit protection which completely isolates PLC and provides necessary freedom to participants to carry out PLC connections with ease.
- Floor mounted kit with 4 castor wheels with brakes for easy movability
- MDF structure reinforced with mild steel to provide necessary rigidity to structure.
- Ergonomically mounted workstation for ease of operation.
- Provision of Ethernet switch which enables other workstations to be connected to PLC-HMI kit with ease.
- Indigenously designed Field Input and output modules which makes it easier for participants to connect the automation modules as well as to carry out ladder programming.
- Ergonomically designed kit which makes it easier for three students to work at a time.
- Use of all industrial components gives participants hands n experience on industrial automation as well as PLC – HMI integration
- Electrical wiring is done with necessary test points to provide basic understanding to participants about electrical panel maintenance as well as troubleshooting.
