Automation Module for PLC – HMI Training Kits

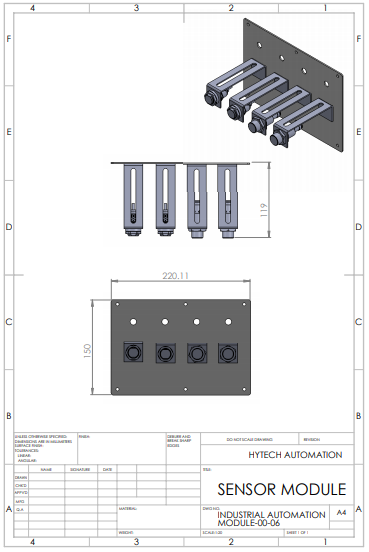

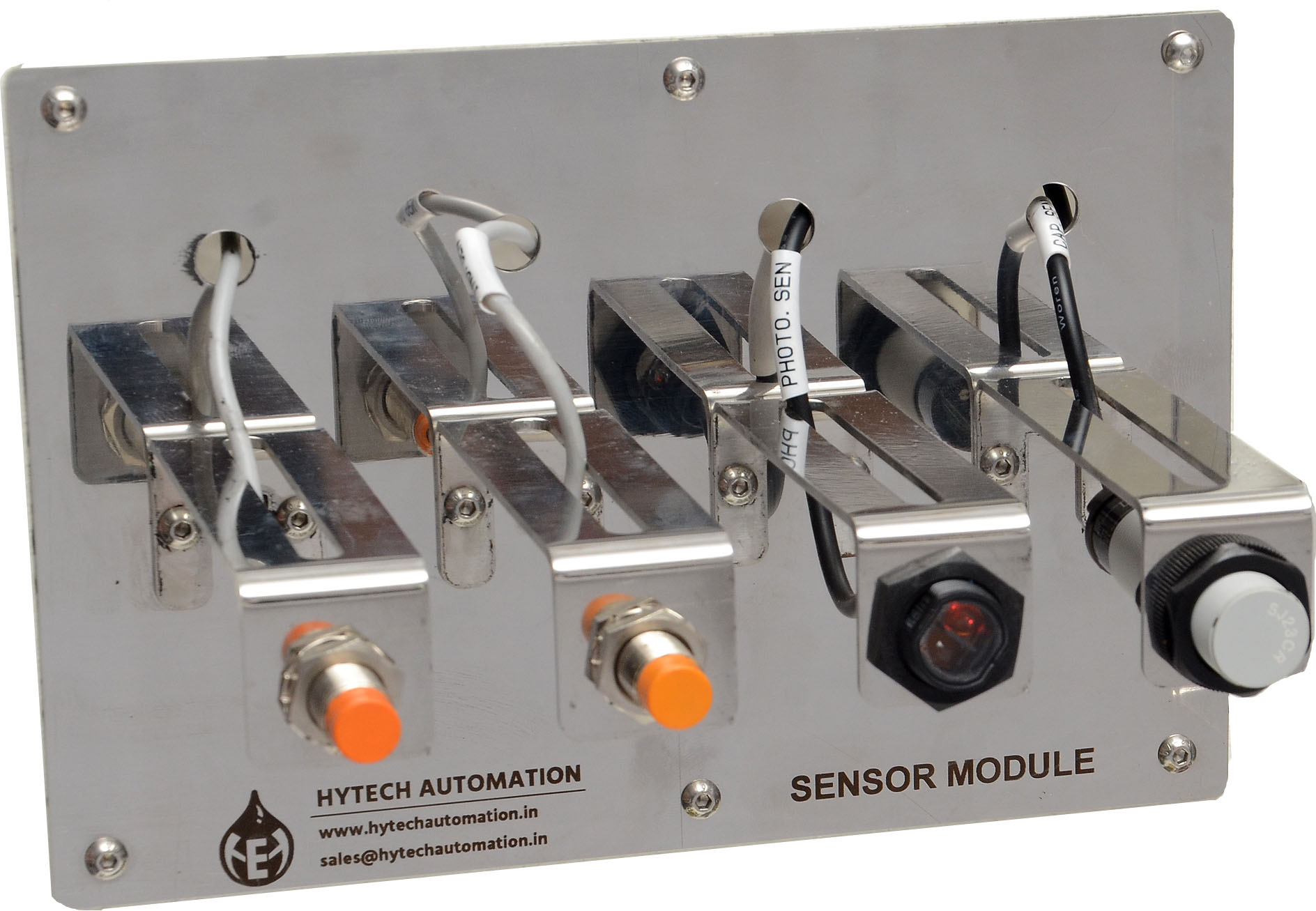

Sensor Module
This module consists of different types of sensors. Generally, capacitive, inductive and photo sensors are provided with NO and NC connections.
This module provides hands on experience on one of the most commonly used industrial automation components, sensors.
What exactly this module provides:
- Exposure to proximity sensor
- Exposure to capacitive sensor
- Exposure to Photosensor
- Understanding the difference between different types of sensors
- Application of NO as well as NC sensors
| Servo Motor Module – BOM | ||
| Description | Qty | Make |
| Inductive sensor M18 (NO Type) | 1 | Omron / Autonics / Contrinex |
| Inductive sensor M18 (NC Type) | 1 | Omron / Autonics / Contrinex |
| Capacitive Sensor M18 (NO Type) | 1 | Omron / Autonics / Contrinex |
| Photosensor M18 (NO Type) | 1 | Omron / Autonics / Contrinex |
| Mounting plate in SS 304 for sensors | 1 | NA |
| Input Connections to PLC | ||
| These are the signals which are transferred from PLC to Servo motor to initiate its operation. Signals and commands are to be given through a ladder diagram in PLC and the same can be demonstrated / operated from HMI | ||
| 1 | Inductive Sen NO | |
| 2 | Inductive Sen NC | |
| 3 | Capacitive Sen | |
