Automation Module for PLC – HMI Training Kits
Stepper Motor Module
This module consists of a Servo Motor, Servo Drive, Encoder cable and power cable. Servo motor provided is a low inertia motor which runs on 230V AC supply.
This module can also be used as a separate module for Servo motor training.
Generally, this module is mounted on a PLC kit for the ease of use as well as operation.
High speed inputs are required to operate this module which are provided and indicated on PLC o/p module.
What exactly this module provides:

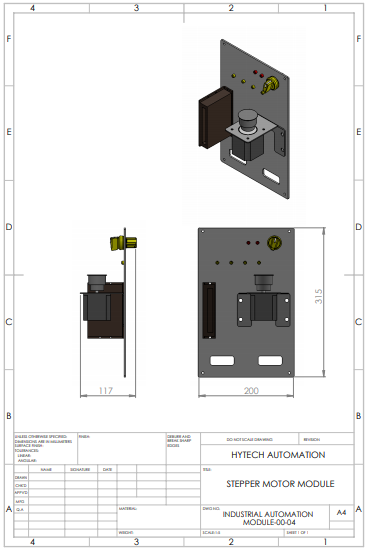

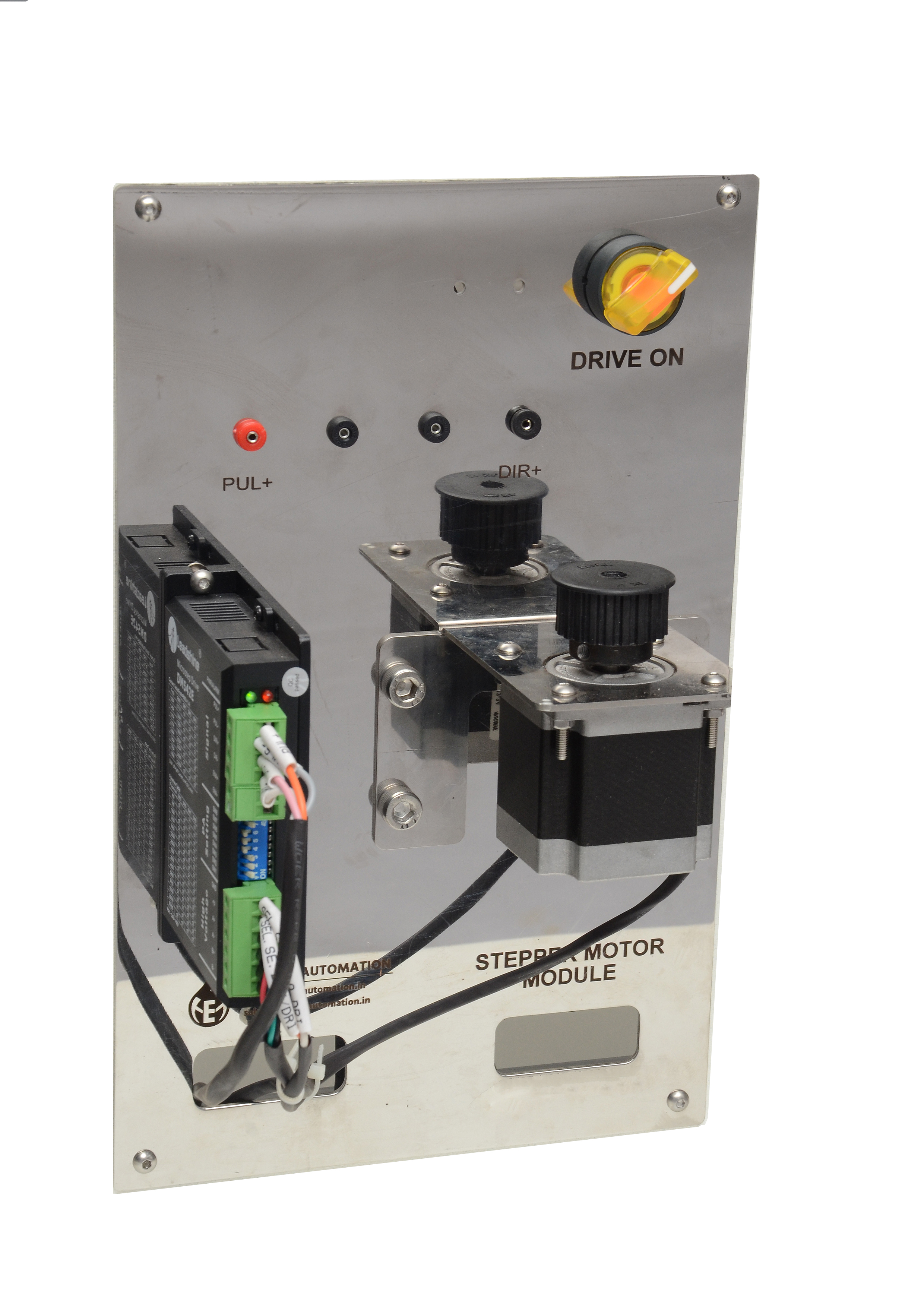

- Exposure to Stepper Motor and Drive
- Stepper Drive and Stepper Motor Connections
- Operation of Stepper Motor from PLC and HMI
- Representation of Stepper Motor AU in HMI in circular as well as linear mode
| Stepper Motor Module – BOM | ||
| Description | Qty | Make |
| Stepper Motor of minimum capacity 10 Kg-cm | 1 | Leadshine / Equivalent |
| Stepper Drive with minimum rating of 4 Amp | 1 | Leadshine / Equivalent |
| Necessary cable set | 1 | NA |
| Mounting plate in SS 304 for mounting drive and motor | 1 | NA |
| Timer pulley with laser engraving for direction of rotation | 1 | NA |
| Main switch with illuminated indication for switching on the module | 1 | Schneider / Siemens |
| Banana sockets for input connections from PLC | 2 | NA |
| Input Connections from PLC | ||
| These are the signals which are transferred from PLC to Stepper motor to initiate its operation. Signals and commands are to be given through a ladder diagram in PLC and the same can be demonstrated / operated from HMI | ||
| 1 | Pulse | |
| 2 | Direction | |
