Handling Robocell with PLC & IIoT

Train on real 6-Axis industrial robotics with Hytech’s Handling Robocell featuring PLC, IIoT, vision & sorting automation.
Download Brochure
Overview

Handling Robocell with PLC & IIoT

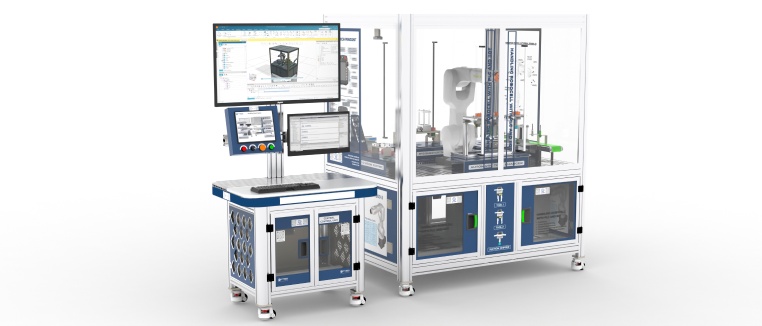

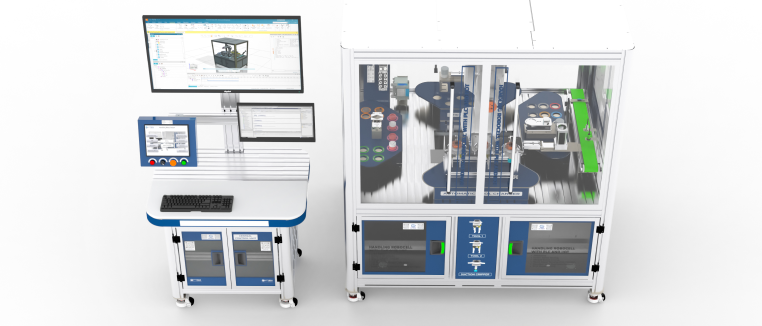

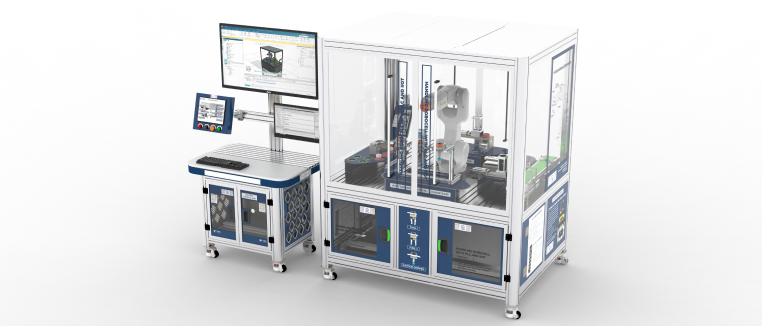

The Hytech Handling Robocell is an advanced, industrial-grade robotic training platform that integrates a 6-Axis Articulated Robot, PLC, IIoT, and sophisticated Vision Systems to deliver a complete Industry 4.0 automation experience. Mounted on a mobile mild steel structure with castor wheels and anti-vibration mounts, this robust cell is designed for high-speed applications in a safe, educational environment. It features polycarbonate-based doors for maximum visibility and safety
Discover Hands-On Excellence
Real 6-Axis Robot

Industrial 6-Axis Articulated Robot (e.g., Mitsubishi 8 CRL / Fanuc LR Mate) with a minimum reach of 700mm and 7KG payload. Uses an electrically actuated SCHUNK gripper.

Features a dedicated Central Control Unit with a PLC (Siemens S7 1200 / Mitsubishi FX5) and a IIoT HMI. Enables real-time data acquisition, cloud connectivity, remote diagnostics, and smart factory connectivity.

Integrates Cognex / BALLUFF vision sensors for high-accuracy inspection, presence detection, and defect identification. The robot makes decisions based on visual data.

All components communicate via Profinet and IO-Link protocols, reflecting modern industrial standards. Smart Lights with IO-Link provide visual process status feedback.

Fully protected setup equipped with emergency stops and door interlocks to ensure essential knowledge of industrial safety standards.

Offline Programming software installed on the workstation serves as a digital dynamic twin for creating and testing robotic programs virtually.

Robotic Handling
Smart Connectivity
Vision Integration
Data Automation
Industrial Simulation
Handling Robocell with PLC & IIoT

Technical Specifications

Download Spec Sheet
Robot System
6-Axis Articulated Robot (700 mm Reach, 7 kg Payload)
Controllers
Siemens S7-1200 / Mitsubishi FX5 PLC
HMI & IIoT
7-inch Touch HMI with IIoT Gateway
Sensors
Cognex Vision, Color Sensor, Load Cell
End Effector
Schunk Electric Gripper
Communication
I/O Link and Profinet Protocols
Applications
Sorting, Assembly, Palletizing, Machine Tending
Structure
Mobile Frame with Polycarbonate Doors
Handling Robocell with PLC & IIoT

Handling Robocell

Industry Applications

Engineering Universities

Advanced robotics and automation learning.

Polytechnic Institutes

Hands-on robotic process control training.

Corporate Training

Employee upskilling in robotic automation.

Manufacturing Facilities

Smart handling and inspection training.

Key Learnings

Learning Outcomes

Robot Programming
Program industrial 6-axis robot using teach pendant.
PLC & IIoT
Integrate PLC and IIoT for robot operations.
HMI Design
Design HMIs for monitoring and controlling processes.
Smart Sorting
Perform color-based and weight-based sorting with PLC.
Material Flow
Operate conveyors and auto feeders effectively.
Machine Tending
Program robot for machine tending and assembly tasks.
Vision Systems
Utilize vision sensors for automated shape recognition.
Palletizing Control
Implement palletizing operations with sensor feedback control.
IIoT Analytics
Analyze process data remotely via IIoT interface.
Digital Twin
Simulate robotic operations using digital twin software.
System Integration
Integrate multiple sensors and actuators for industrial tasks.
Advanced Practice
Perform hands-on exercises with complex automation scenarios.
Empowering Future Technicians

Building Skills for the Future

At Hytech Automation, we shape future engineers and technicians through hands-on learning. Our training systems integrate CNC, robotics, automation, and IoT with structured pathways, preparing students to confidently tackle real-world industrial challenges.

Our Process

Integration with Hytech Training Pathway

01

Mechatronics Fundamentals

Learn PLC, HMI, and sensor integration for industrial automation basics.

02

Applied Mechatronics

Master servo control, motion systems, and IIoT-based real-time monitoring.

03

Handling Robocell

Master robotic automation and vision systems for advanced automation training.

04

Smart Factory Integration

Experience digital twin, SCADA, and fully automated Industry 4.0 environments.
